Window Hardware Products

Product Description

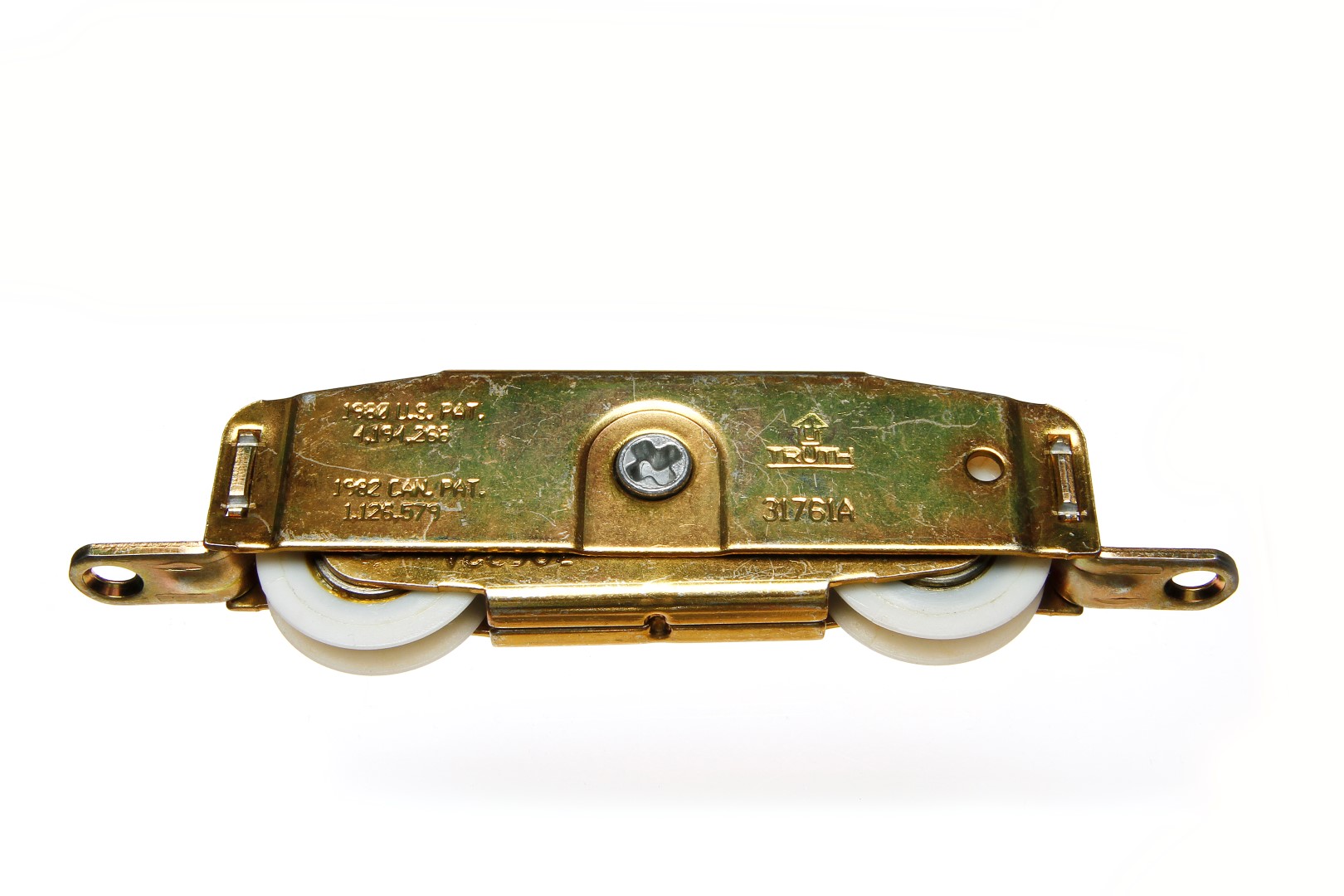

The #39.11 Tandem Side Adjust Roller (1-1/4" Dia.) with steel housing and nylon roller will support up to a 250 lbs. door ((2 Roller)s required). This roller has an 11/16 inch (17.5 millimeters) wide, 1-3/16 inch (30.1 millimeters) tall adjustable steel housing assembly with screw holes 5-3/4 inch (146 millimeters) on the center. The number sometimes found on this roller is 31761. (See page 3, figure 1 of the product specification documentation)

• These sliding patio door rollers are then heat-treated for wear resistance and plated for corrosion resistance
• You can dependably support up to a 500 lb. door with two roller assemblies per door
• Side Adjust Tandem Patio Door Rollers are equipped with full race, permanently lubricated ball bearings that are labyrinth-shielded to resist contamination by dust and moisture.

For additional assistance with installation or tips on choosing the right part, always refer to the product specifications documentation.

View Installation Documentation
